TP4056 Battery Charging Protection Type C module

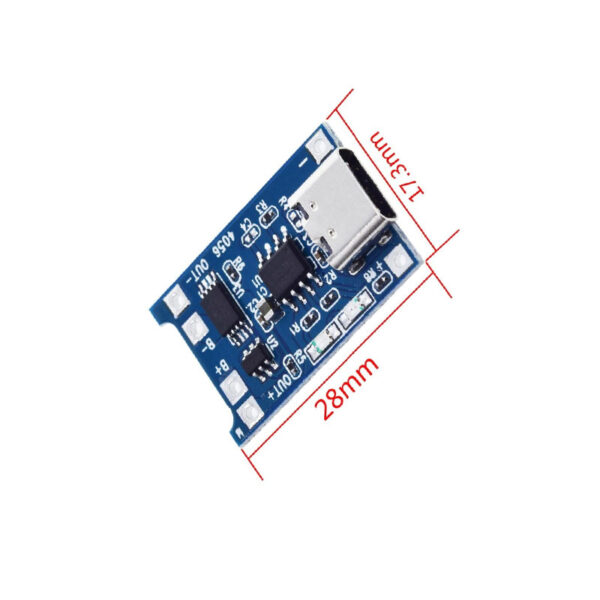

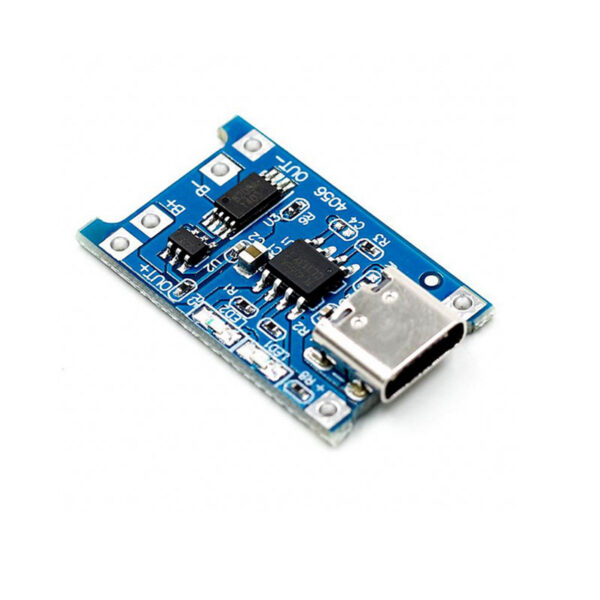

TP4056 Battery Charging Protection Type C module This TP4056 1A Li-Ion Battery Charging Board Type C with Current Protection is a tiny module, perfect for charging single cell 3.7V 1 Ah or higher lithium-ion (Li-Ion) cells such as 16550s that don’t have their own protection circuit. Based on the TP4056 charger IC and DW01 battery protection IC this module will offer 1A charge current and cut off when finished. Using the module: Connect Type C cable for power, or 5V DC to pads marked IN and IN- on the left-hand side of the module Connect cell to charge to B /B- pads on the right-hand side of the module. A load (something for the battery to power) can be connected to the OUT /OUT- pads on the right-hand side Important! Disconnect load when charging The red LED indicates charging in progress, the green LED indicates charging has finished. Never charge your battery at a rate greater than 1C. Features : Led indicator: Red is charging Blue is fully charged. Current Protection: Yes Inversed polarity: NO. Use mature charging chip TP4056 for simple peripheral circuits, good protection performance, and high charging accuracy. Fully machinery automated processing, all patch parts manufacturing. Package Includes : 1 x TP4056 1A Li-ion Lithium Battery Charging Module With Current Protection – Type C SKU: CE-23-00141 Category: Charger Tags: TP 4056, TP4056 Micro USB
