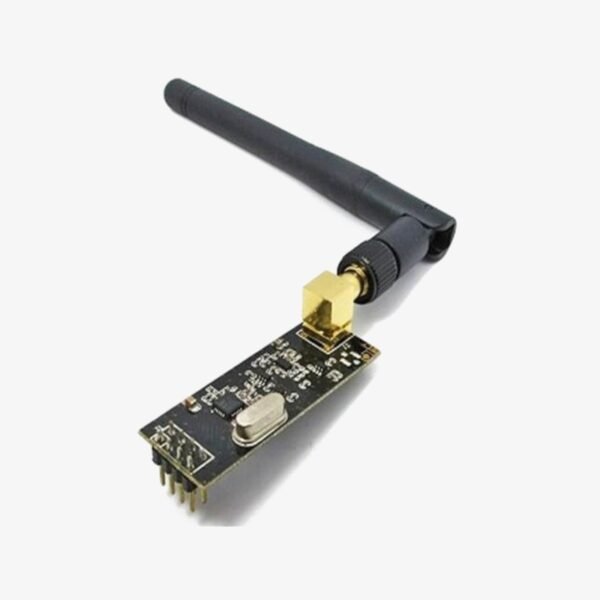

RF24L01 PA LNA SMA Wireless Transceiver Antenna

Description RF24L01 PA LNA SMA Wireless Transceiver Antenna The NRF24L01 module is a state-of-the-art RF module that uses Nordic Semiconductor’s 2.4GHz transceiver, the NRF24L01 . This IC operates in the 2.4GHz band and comes with many new features, such as additional pipelines, buffers, and an auto-retransmit function. The board has a reverse-polarized SMA connector that maximizes the RF range, as well as a PA and LNA circuit, which enables long-distance communication when combined with an external antenna. ⚙️ Features & Specifications: • �� Frequency Band: 2.4GHz ISM band (license-free) • ⚡ Transmit Power: Greater than 20 dBm • �� Six-channel Data Reception • �� High Speed: 2Mbit/s, enabling high-quality VoIP • �� Multi-frequency Points: 125 frequency points for multi-point communications and frequency hopping • �� Low Cost: Integrated high-speed signal processing for RF protocol, including automatic packet resend and acknowledge signal generation • �� SPI Interface: Easy communication with MCU I/O ports • ��️ RF Development Simplification: No need for additional RF development • �� Software Compatible: Fully compatible with NRF24L01 modules �� Applications: • �� Wireless Communication Systems • �� Remote Control Systems • ��️ Sensor Networks • �� Data Transmission Projects • �� Robotics and Automation �� Benefits: • �� Long-range Communication up to 1000 Meters • ⚙️ Enhanced Stability with PA and LNA Circuits • �� Simple Integration with Existing Systems • �� Reliable Performance with Minimal Interference �� Package Includes: • 1 x nRF24L01 PA LNA Module • 1 x 2DB 2.4G Antenna
