AL-KO 12″ Electric Backing Plate Left with Park Brake | High-Performance Braking System

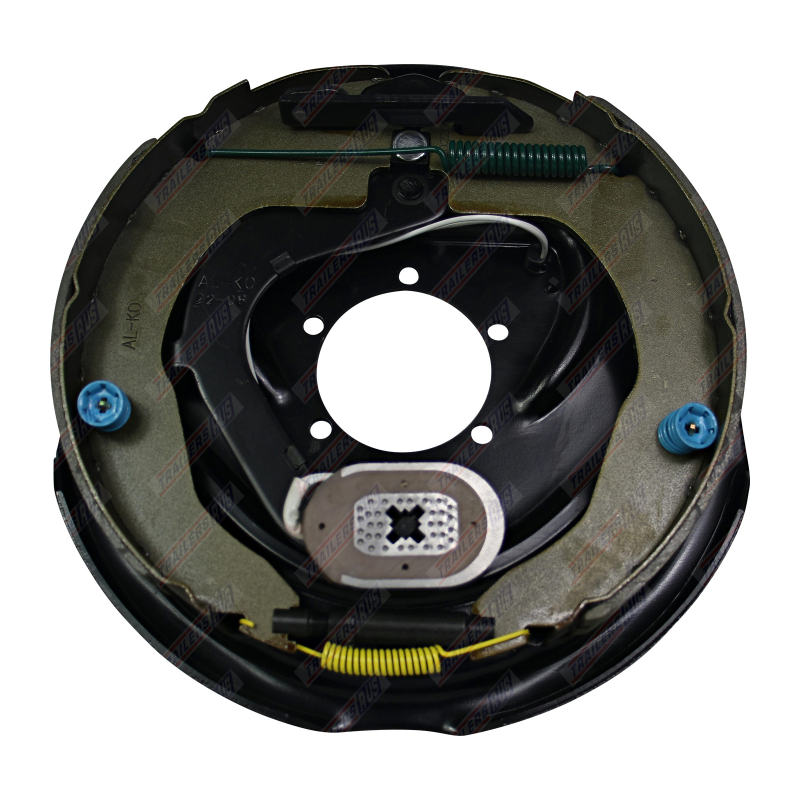

Description OverviewThis is a genuine AL‑KO 12″ electric brake backing plate with integrated park brake lever—designed for use with 12″ × 2″ drum brakes on electric-braked trailer axles. It includes all pre-installed internal brake components mounted on a steel backing plate, ready to bolt directly to the brake flange. What’s Included Fully assembled backing plate Pre-fitted brake shoes Electric brake magnet Actuating arm and return springs Park brake lever Key Features Ready-to-install: no assembly required Park brake compatible: includes handbrake lever arm 12″ drum compatibility: suits 12″ × 2″ electric drum hubs Standard 5-hole mount pattern: matches common 10″ and 12″ AL‑KO or Dexter-style brake flanges Pre-fitted magnet: for use with standard trailer brake controllers Reversible RH or LH fitment—sold individually Application Notes Commonly used on caravans, boat trailers, and utility trailers with electric drum brake systems Compatible with most AL‑KO and Dexter-style 12″ electric drum hubs Must be paired with a compatible 12″ drum (2″ wide) and brake wiring For tandem or dual-axle setups, order both RH and LH versions
