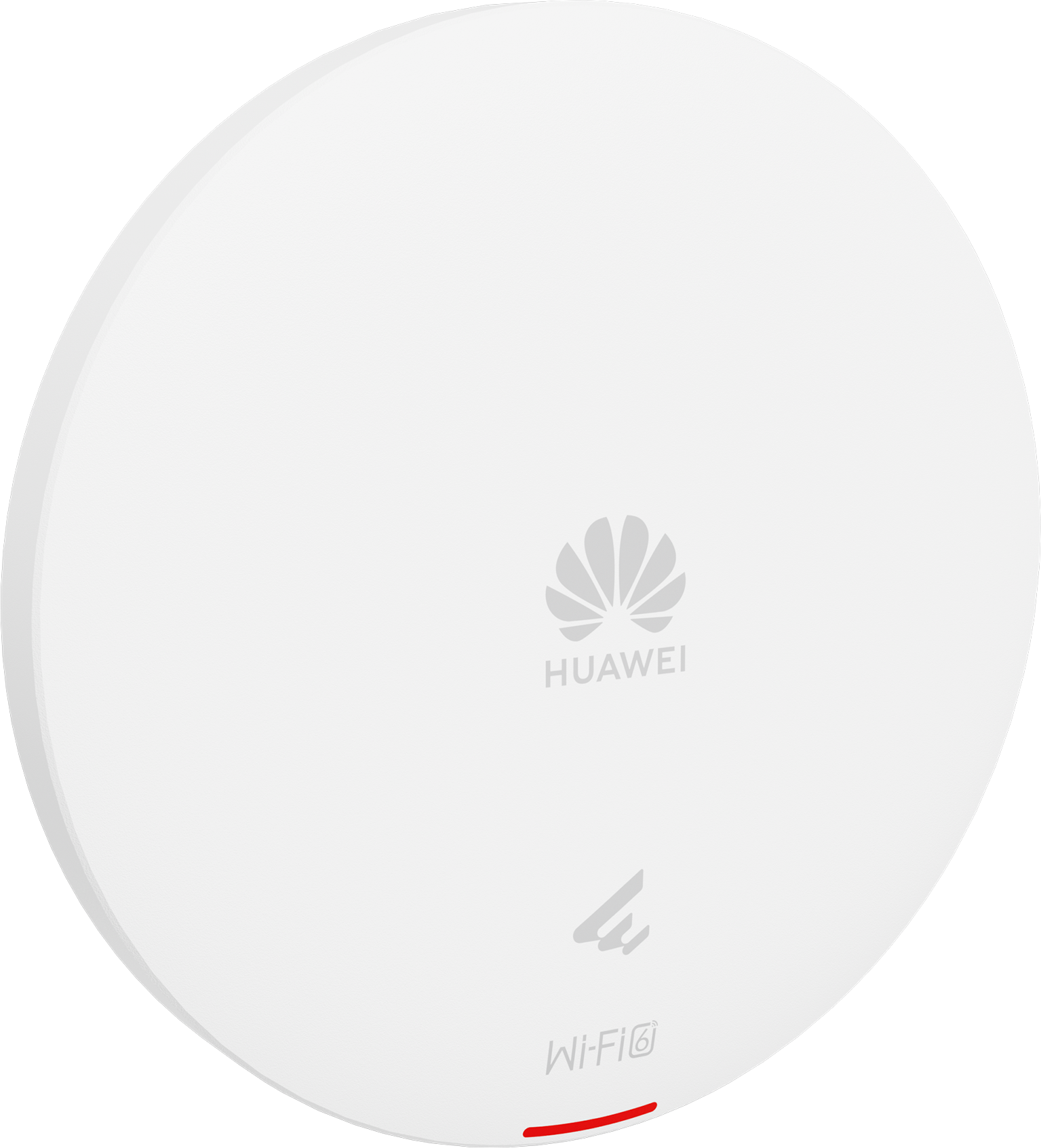

Huawei eKitEngine AP361 Access Point

Installation Type Wall Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod) Dimensions without packaging (H x W x D) [mm(in.)] Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.) Dimensions with packaging (H x W x D) [mm(in.)] 200 mm x 231 mm x 61 mm (7.87 in. x 9.09 in. x 2.40 in.) Weight without packaging [kg(lb)] 0.45 kg (0.99 lb) Weight with packaging [kg(lb)] 0.75 kg (1.65 lb) Storage NAND Flash 256 MB Console port None Maximum power consumption [W] 9.4 W Maximum heat dissipation [BTU/hour] 32.1 BTU/hour Power supply mode PoE Rated input voltage [V] NA Input voltage range [V] PoE: 802.3af Service port surge protection PoE port: Service port surge protection PoE port:Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion BDifferential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B PoE OUT Not supported Maximum number of physical ports on the entire device GE (RJ45) x 1, 10M/100M/1000M auto-sensing Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) Storage temperature [°C(°F)] –40°C to 70°C (–40°F to 158°F) Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing Long-term operating altitude [m(ft.)] –60 m to 5000 m (–196.85 ft to 16404.20 ft) Atmospheric pressure [kPa] 53kPa – 106kPa ETSI 300 019-2-3 Ground Floating ground USB Not supported IoT slot Not supported BLE Not supported Radio number 2 Operating frequency band 2.4GHz 5GHz MIMO spatial streams Radio 0 (2.4 GHz): 2x2Radio 1 (5 GHz): 2×2 Wi-Fi standard 2.4G: 802.11b/g/n/ax5G: 802.11a/n/ac/ac Wave 2/ax Radio interface Built-in smart antennas Antenna gain 2.4G:4 dBi/chain (peak)2 dBi (combined gain)5G:5 dBi/chain (peak value)3 dBi (combined gain) Maximum transmit power 2.4 GHz:20 dBm/chain23 dBm (combined power)5 GHz:20 dBm/chain23 dBm (combined power)NOTE: In V200R024C10 and later versions, the combined power is increased to 23 dBm by default. In versions earlier than V200R024C10, the combined power is only 20 dBm. To increase the transmit power for the AP running an earlier version, install the corresponding patch by referring to the announcement on the official website. Singal radio transmit power [dBm] 2.4 GHz: 0–20 dBm/chain5 GHz: 0–20 dBm/chainNOTE: In V200R024C10 and later versions, the transmit power of a radio is increased to 20 dBm per chain by default. In versions earlier than V200R024C10, the transmit power of a radio is only 17 dBm per chain. To increase the transmit power of a single radio in earlier versions, install the corresponding patch by referring to the announcement on the official website. MTBF [year] 440.3 year MTTR [hour] 2 hour Frequency stability [ppm] /-20 802.3bt power supply description No function is limited. 802.3at power supply description No function is limited. 802.3af power supply description No function is limited. DC power supply description DC power supply is not supported.
