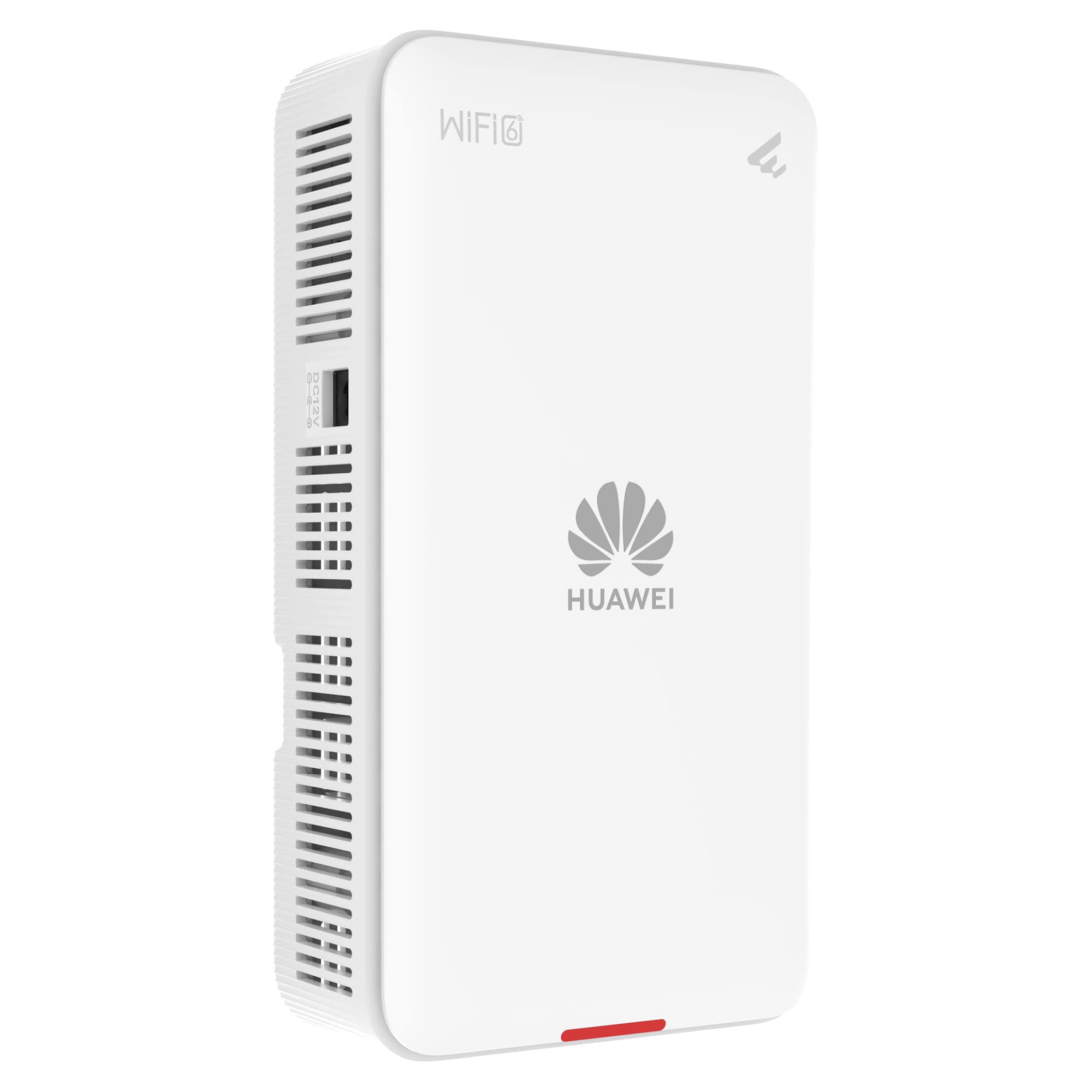

Huawei eKitEngine AP266 Wireless Access Point

Installation Type Desk Wall Ceiling (Gypsum Board) Junction Box (86 mm/1-Gang 120 mm/Octagonal) Dimensions without packaging (H x W x D) [mm(in.)] 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.) Dimensions with packaging (H x W x D) [mm(in.)] 187 mm x 108 mm x 68 mm (7.36 in. x 4.25 in. x 2.68 in.) Weight without packaging [kg(lb)] 0.23 kg (0.51 lb) Weight with packaging [kg(lb)] 0.42 kg (0.93 lb) Storage NAND Flash 256 MB Console port Not supported Maximum power consumption [W] 9.4 W (excluding PoE out) Maximum heat dissipation [BTU/hour] 32.07 BTU/hour Power supply mode PoE Rated input voltage [V] NA Input voltage range [V] PoE: 802.3at/af Service port surge protection PoE ports: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B Non-PoE ports: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B PoE OUT Supported Maximum PoE output power [W] 15 W Maximum number of physical ports on the entire device GE (RJ45) x 5, 10M/100M/1000M auto-sensing Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) Storage temperature [°C(°F)] –40°C to 70°C (–40°F to 158°F) Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing Long-term operating altitude [m(ft.)] –60 m to 5000 m (–196.85 ft to 16404.20 ft) Atmospheric pressure [kPa] 53kPa – 106kPa ETSI 300 019-2-3 Ground Floating ground USB Not supported IoT slot Not supported BLE Not supported Radio number 2 Operating frequency band 2.4GHz 5GHz MIMO spatial streams Radio 0 (2.4 GHz): 2×2 Radio 1 (5 GHz): 2×2 Wi-Fi standard 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax Radio interface Built-in smart antennas Antenna gain 2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 4 dBi/chain (peak value) 1 dBi (combined gain) Maximum transmit power 2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power) Singal radio transmit power [dBm] 2.4G: -10 dBm to 20 dBm/chain 5G: -10 dBm to 20 dBm/chain MTBF [year] 235.46 year MTTR [hour] 2 hour Frequency stability [ppm] /-20 802.3bt power supply description The power supply mode is negotiated to 802.3at, and no function is restricted. 802.3at power supply description The power supply mode is negotiated to 802.3at, and no function is restricted. 802.3af power supply description The power supply mode is negotiated to 802.3af, and the PSE out function is unavailable. DC power supply description Not supported
